Vehicle Decoder for PluX22 Interface

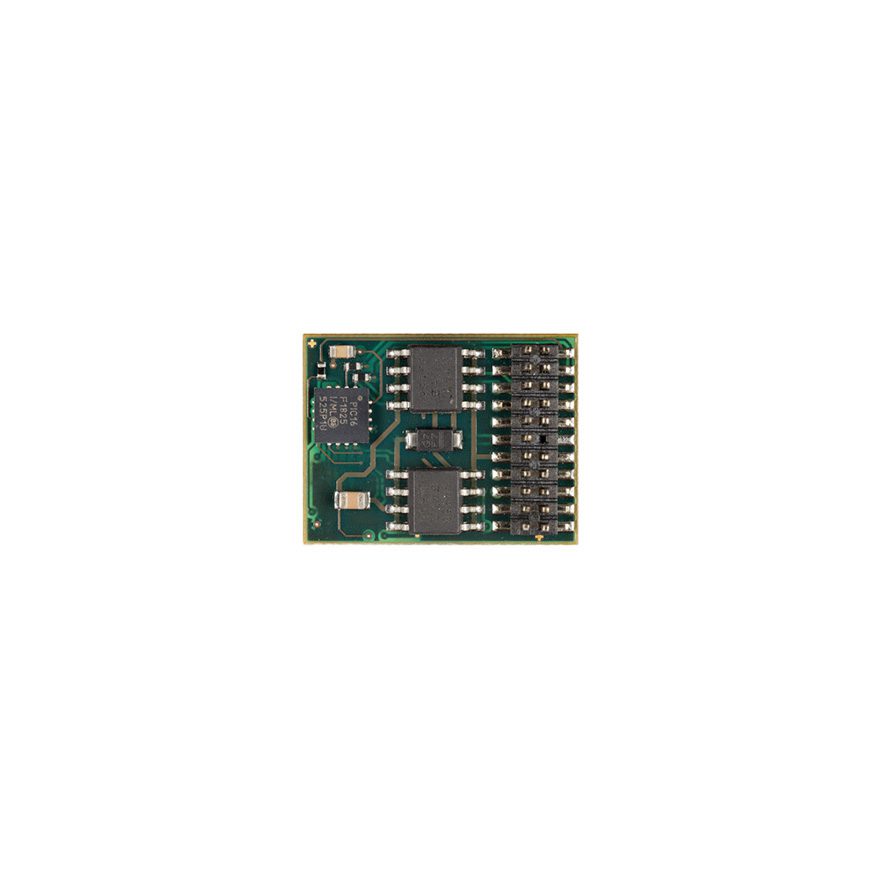

Vehicle decoder DH22A for SX1, SX2, DCC and MM for the PluX22 interface

Vehicle decoder 2.0 A

Operating mode SX1, SX2, DCC, MM, DC analog, AC analog
Dimensions [mm] (subject to change) 20.7 * 15.8 * 5.2
Total load capacity 2.0 A
Max motor current 2.0A
Max. driving voltage 30 V
Switching voltage with AC-analogue max. 45 V peak = 30 V rms.
LV, LR (dimmable) 150 mA each
AUX1, AUX2 (dimmable) 300 mA each
AUX3, AUX4 1.0A each
AUX5, AUX6 1.0A each
AUX7 1.0A
AUX8 unamplified

830607
