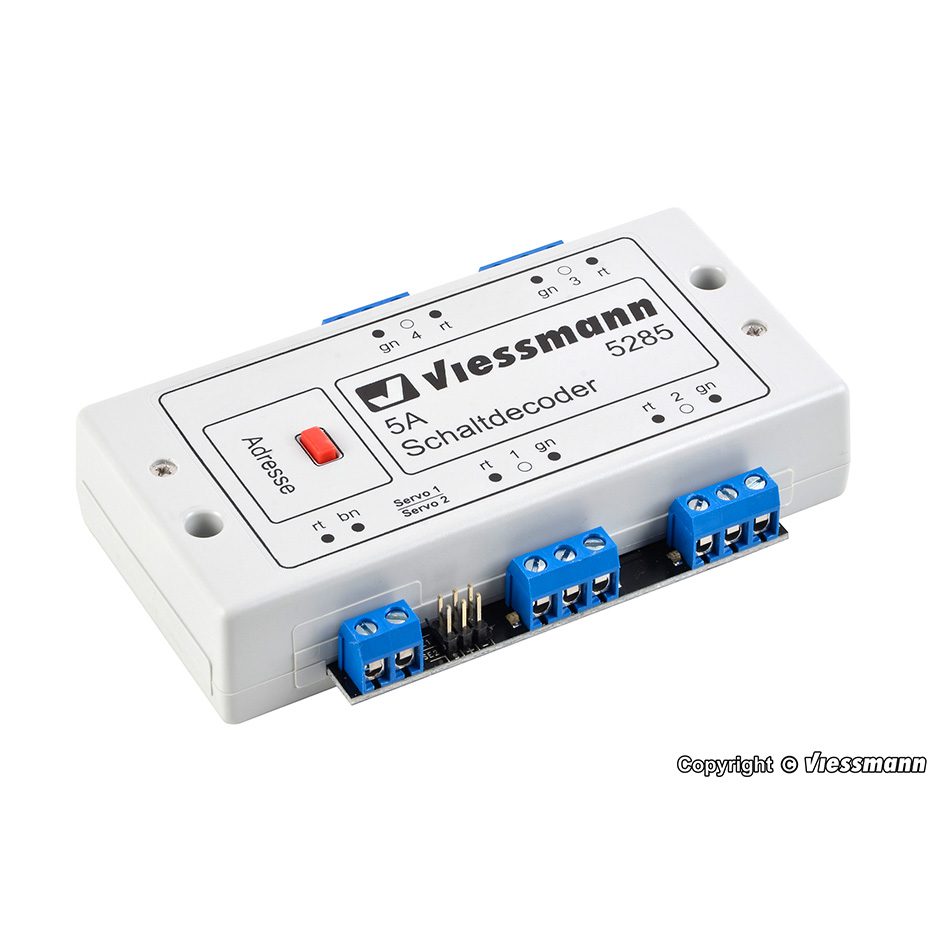

Multi protocol switching decoder

Article number: 5285

Multi protocol decoder for DCC and Märklin-Motorola. Equipped with 4 powerful relays, and can control 2 servos.Features: 4 separate and galvanically isolated outputs, bi-stable outputs, switching […]

83.50Purchase & earn 84 points!

1 in stock

Product Description

Multi protocol decoder for DCC and Märklin-Motorola. Equipped with 4 powerful relays, and can control 2 servos.Features: 4 separate and galvanically isolated outputs, bi-stable outputs, switching position is preserved even without supply voltage. Supply provided by the track signal, continuous current up to 5 A each output, LEDs indicate the states of the outputs. Programmable via the programming track and POM. Address can be also set with the push of a button. Supports RailCom. The speeds and end positions of the servos can be configured, power supply for both servos: 300 mA total continuously, 450 mA peak. Screw terminals.
