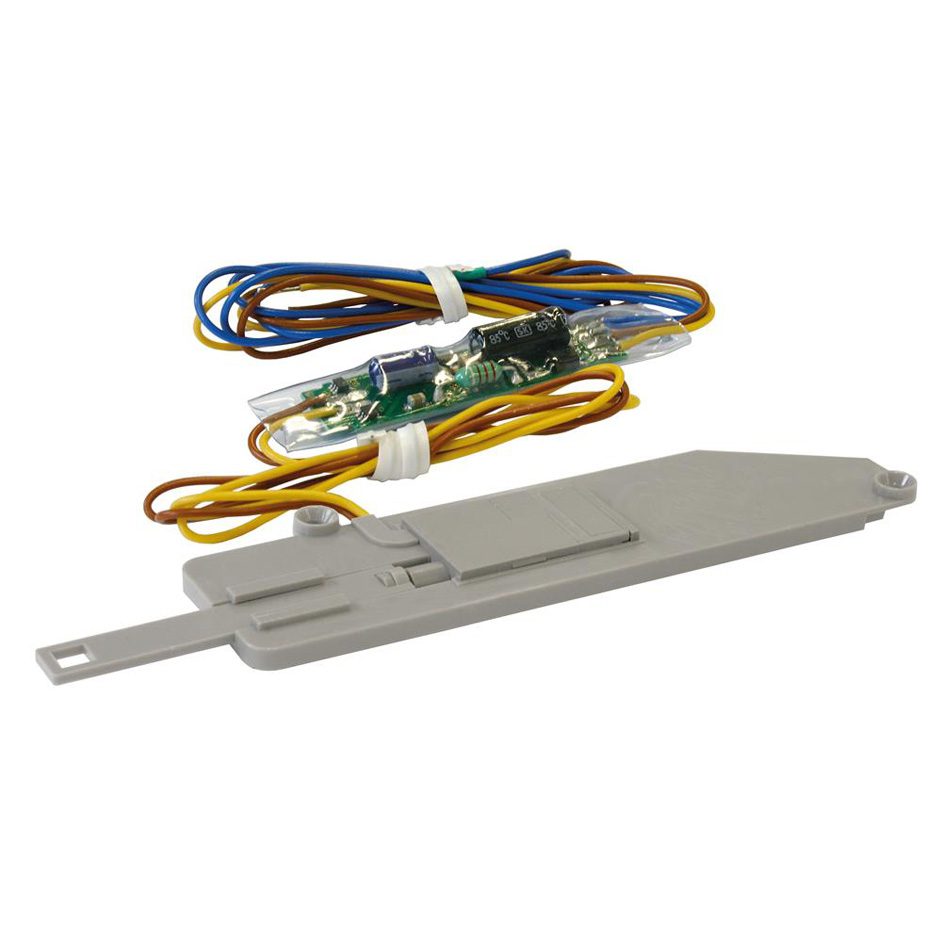

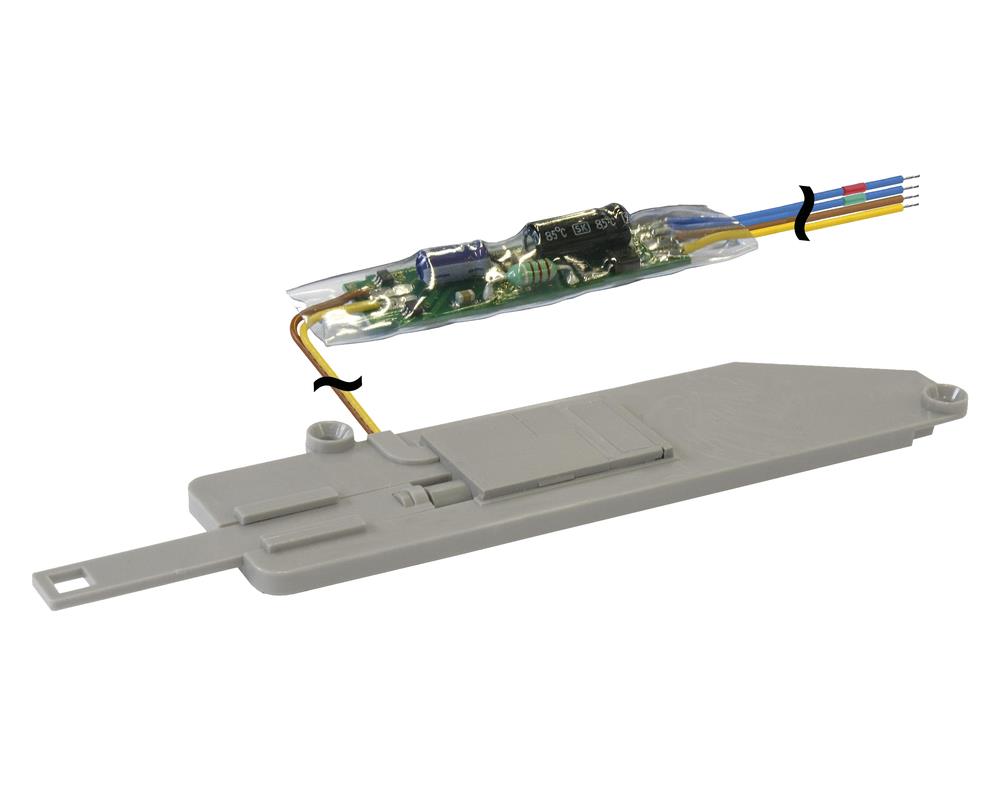

H0 Motorized Switch Drive for Märklin/Trix C-track

This special turnout motor is a powerful, low-noise motor with a matching digital decoder for installation in Märklin and Trix C-Track system turnouts. The decoder is located as a subassembly in the cable, making the motor particularly compact. The turnout motor features prototypically slow movement of the switch blades. The speed and movement sequence are electronically controlled, ensuring sensitive operation. If, due to the characteristics of your turnout, the direction of movement does not match the switching direction on your input device, you can reverse the direction of the motor in digital operation. The associated decoder understands the Märklin-Motorola and DCC formats and can report the requested target or actual position via RailCom to suitable digital control units, e.g., the Viessmann Commander Art. 5300. It can also be operated in analog mode. Additional switching outputs for conventional position feedback and frog polarization complete the range of functions. Their functions are configurable.
